What is a pigtail in fiber optics

A fiber optic pigtail is a short optical fiber with a factory-terminated connector on one end and bare fiber on the other, used to splice into a larger fiber cable for reliable network connections.

Definition and Purpose

A fiber optic pigtail is typically 0.5 to 2 meters long, with one end pre-terminated with a polished connector and the other end left as bare fiber for splicing. The connector end plugs directly into equipment, patch panels, or optical distribution frames (ODFs), while the bare fiber end is permanently joined to the incoming fiber cable using fusion or mechanical splicing. This design ensures low insertion loss, high return loss, and reliable performance compared to field-installed connectors, which are slower and less precise to terminate in the field .

Difference from Patch Cords

While a patch cord has connectors on both ends for connecting devices or panels, a pigtail has only one connector. Patch cords are typically jacketed, whereas pigtails often use unjacketed fiber suitable for splicing. In practice, a patch cord can even be cut to create two pigtails if needed . Pigtails are mainly used for terminating bulk fiber cables at distribution points, whereas patch cords are used for interconnecting equipment.

Types of Fiber Pigtails

Fiber pigtails are classified by fiber type and connector type:

• Fiber type: Single-mode (OS1/OS2) or multimode (OM1, OM2, OM3, OM4, OM5) depending on the application .
• Connector type: LC, SC, ST, FC, MU, E2000, MPO, among others, chosen based on equipment compatibility and density requirements .
• Polish type: APC (angled) or UPC (ultra-polished) to control back reflection and insertion loss.

Splicing Methods

The bare fiber end of a pigtail is joined to the main fiber cable using:

• Fusion splicing: Melts fibers together for a permanent, low-loss connection.
• Mechanical splicing: Aligns fibers in a precision sleeve for a temporary or semi-permanent connection .

Applications

Fiber optic pigtails are widely used in:

• Optical distribution frames (ODFs)

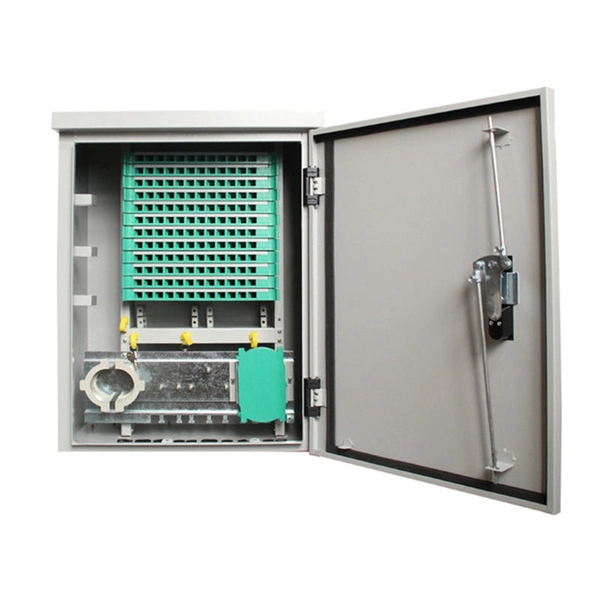

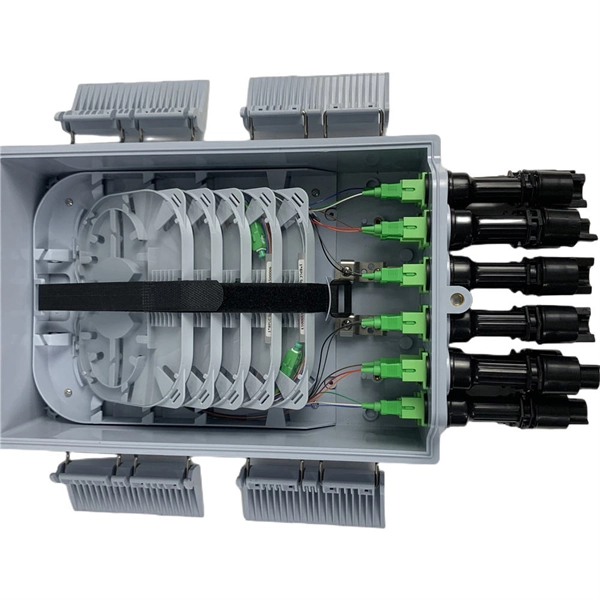

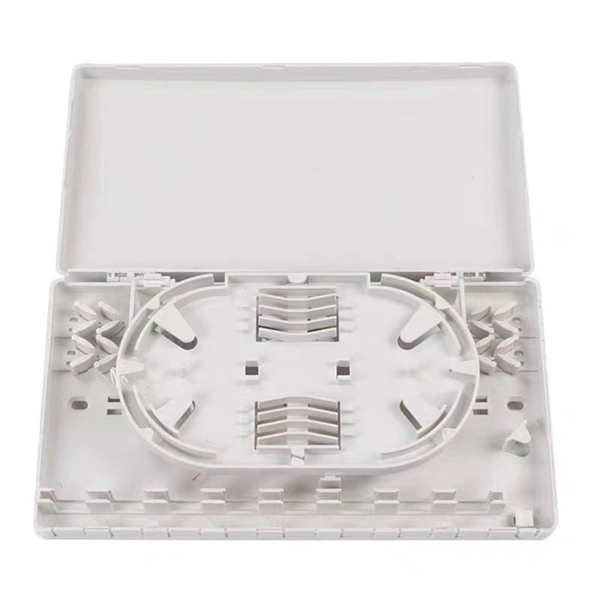

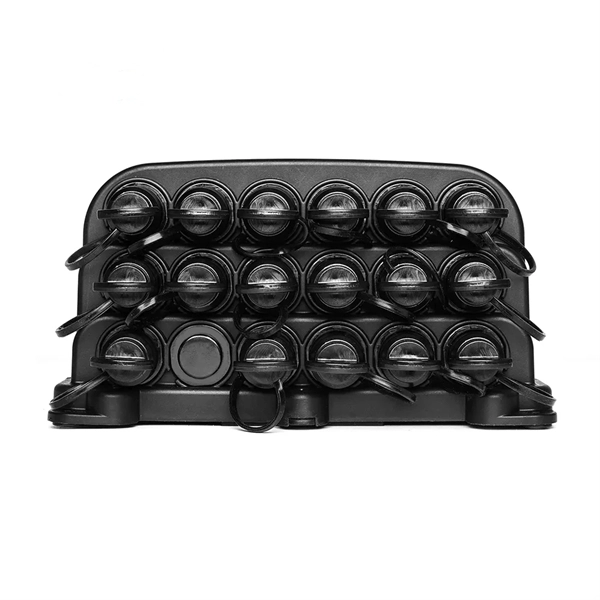

• Fiber terminal boxes
• Patch panels
• FTTH (Fiber to the Home) deployments They are essential in single-mode networks, appearing in an estimated 99% of such applications, and are also used in multimode networks for short-reach connections .

Advantages

• Factory-grade connector quality ensures consistent performance.
• Time and labor savings compared to field-terminated connectors.
• Flexibility to splice into any cable system.
• Low-loss, reliable terminations that improve long-term network performance . In summary, fiber optic pigtails are a critical component in structured cabling, providing a reliable, efficient, and high-performance interface between bulk fiber cables and network equipment.
