How much attenuation does the optical cable itself have

Optical cable attenuation is typically measured in decibels per kilometer (dB/km), with single-mode fibers around 0.2–0.35 dB/km and multimode fibers higher, depending on wavelength and installation conditions.

Definition and Measurement

Attenuation in fiber optics is the gradual loss of light signal strength as it travels through a fiber cable, expressed in dB/km. It is measured using tools like Optical Time Domain Reflectometers (OTDRs) or optical power meters, which compare input and output power to calculate the loss over distance (dB/km) or total link loss (dB) . The formula for attenuation is: Attenuation (dB) = 10 × log10(Pin / Pout) where Pin is the input power and Pout is the output power. If the fiber length is known, the attenuation coefficient can be calculated as: Coefficient (dB/km) = Attenuation (dB) / Length (km) .

Typical Values

• Single-mode fiber: ~0.20 dB/km at 1550 nm, ~0.35 dB/km at 1310 nm .
• Multimode fiber: Higher attenuation, often 2–3 dB/km at 850 nm, depending on core size and launch conditions .
• Plastic optical fiber: Can exceed 300 dB/km .

Causes of Attenuation

1. Intrinsic losses: Absorption by the glass material and Rayleigh scattering due to microscopic density variations in the fiber .
2. Bending losses: Macrobending (large bends) and microbending (small, stress-induced bends) can cause light to escape the core .

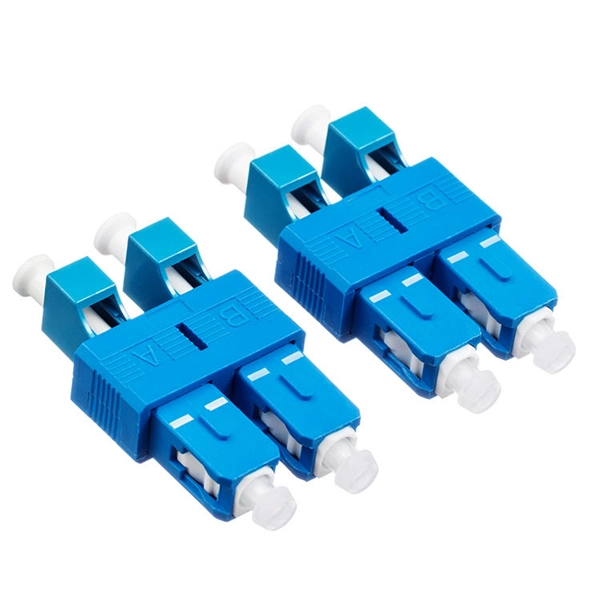

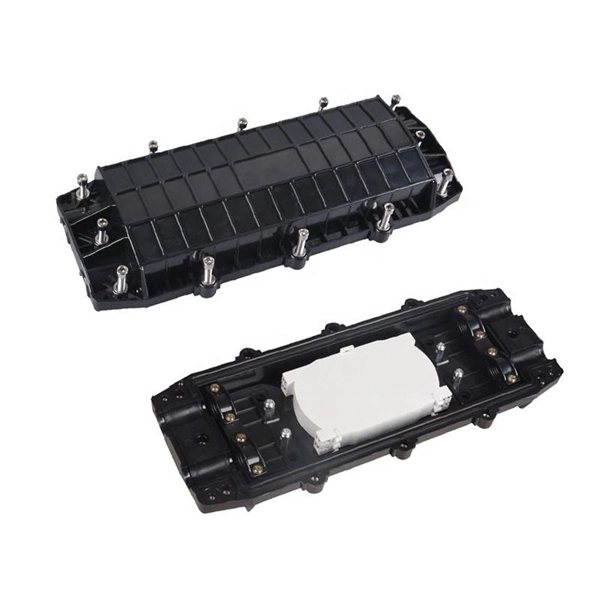

3. Connector and splice losses: Misalignment, dirt, or poor polishing at connectors and splices contribute to additional attenuation .
4. Wavelength dependence: Longer wavelengths (e.g., 1550 nm) experience lower scattering and travel farther than shorter wavelengths (e.g., 850 nm) .

Calculating Total Link Loss

The total optical link loss is the sum of all contributions: Total Link Loss (dB) = Cable Attenuation + Connector Attenuation + Splice Attenuation . For example, a 10 km single-mode fiber at 1550 nm with 0.2 dB/km attenuation, two connectors (0.3 dB each), and one splice (0.1 dB) would have: Total Loss = (0.2 × 10) + (0.3 × 2) + 0.1 = 2 + 0.6 + 0.1 = 2.7 dB.

Practical Considerations

• Keep fibers clean and avoid sharp bends to minimize attenuation .
• Use OTDRs to locate localized losses and verify link performance .
• Consider the loss budget of your system to ensure the signal remains above the receiver's minimum input level . Understanding and managing optical attenuation is crucial for reliable network performance, especially over long distances or high-speed links.
