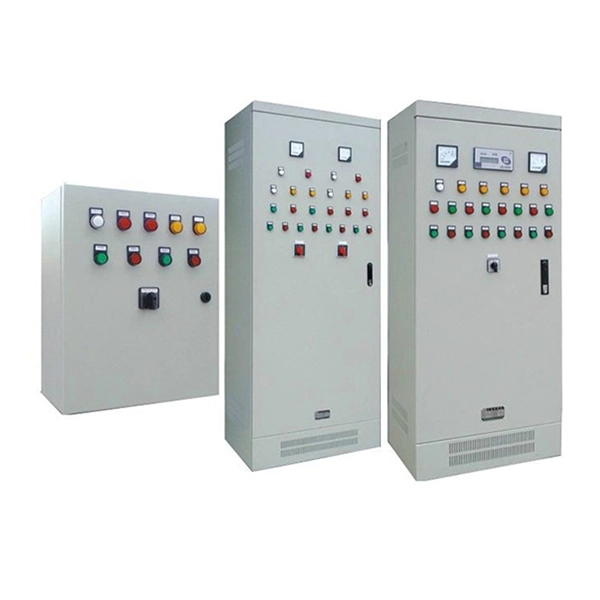

Installing electrical distribution boxes in buildings

Installing an electrical distribution box requires careful placement, proper wiring, grounding, and adherence to safety standards to ensure reliable and safe power distribution.

Step 1: Choose the Right Distribution Box

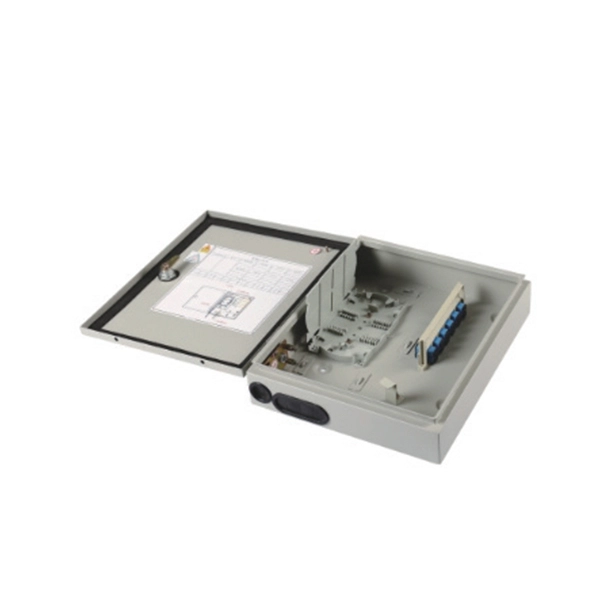

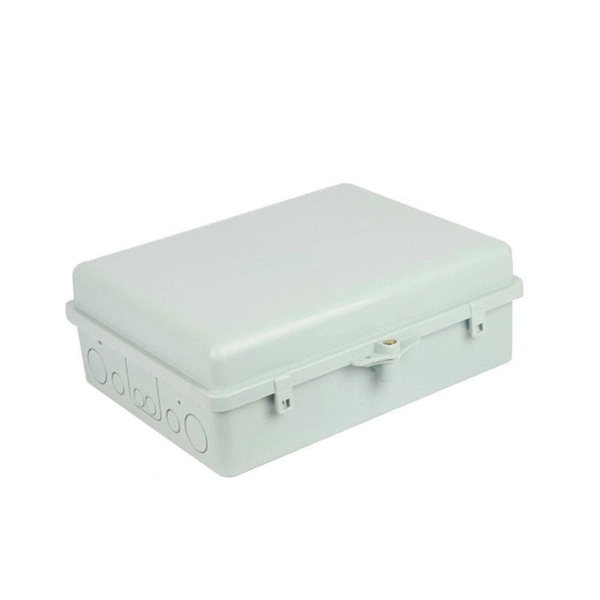

Select a distribution box suitable for your building type—residential, commercial, or industrial. Consider load capacity, durability, and environment (indoor or outdoor). Check the IP or NEMA rating to ensure protection against dust, water, and corrosion. Steel enclosures are durable for industrial use, while plastic is suitable for indoor residential setups ( ).

Step 2: Determine the Installation Location

• Install in a dry, accessible area with good ventilation.
• Maintain a height of around 1.5 meters for residential boxes; industrial boxes may vary depending on surrounding equipment ( ).
• Keep the box away from water, flammable, explosive, or corrosive substances.
• Ensure easy access for maintenance and future upgrades ( ).

Step 3: Prepare Tools and Materials

You will need:

• Electrical enclosure (distribution box)
• Circuit breakers, fuses, or RCBOs
• Terminal connectors and wiring
• Wire strippers, screwdrivers, and multimeter
• Mounting hardware (expansion bolts or screws)
• Zip ties for wire management ( )

Step 4: Mount the Distribution Box

• Align the box with the mounting surface and mark the positions for bolts.
• Drill holes and secure the box firmly using expansion bolts or screws.
• Ensure the box is level and stable, without tilting or loosening ( ).

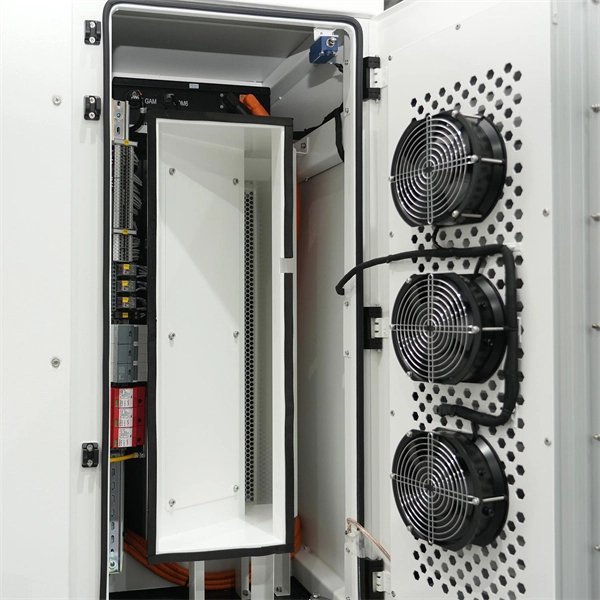

Step 5: Wiring the Box

• Peel insulation from wires to the correct length.
• Connect phase wires to phase terminals, neutral wires to neutral terminals, and ground wires to grounding terminals.
• Install circuit breakers or fuses for each circuit.
• Arrange wires neatly, secure with zip ties, and leave space for heat dissipation ( ).
• Follow the wiring diagram to ensure correct connections and circuit identification ( ).

Step 6: Grounding and Safety Checks

• Ensure proper grounding to prevent electrical hazards.
• Perform an insulation resistance test to verify insulation quality.
• Check all connections for tightness and correct polarity ( ).

Step 7: Testing and Commissioning

• Use a multimeter to test each circuit for continuity and correct voltage.
• Switch on the main power and verify that all circuits operate correctly.
• Label each circuit clearly for future maintenance ( ).

Step 8: Maintenance and Upgrades

• Schedule regular inspections to check for loose connections, corrosion, or overheating.
• Consider modular designs for easier future expansion or upgrades ( ). By following these steps, you ensure a safe, reliable, and code-compliant installation of an electrical distribution box in your building.
