Requirements for Electrical Component Configuration in Distribution Boxes

Proper configuration of electrical components in distribution boxes requires adherence to safety standards, correct wiring, grounding, protection devices, and organized layout for reliable operation.

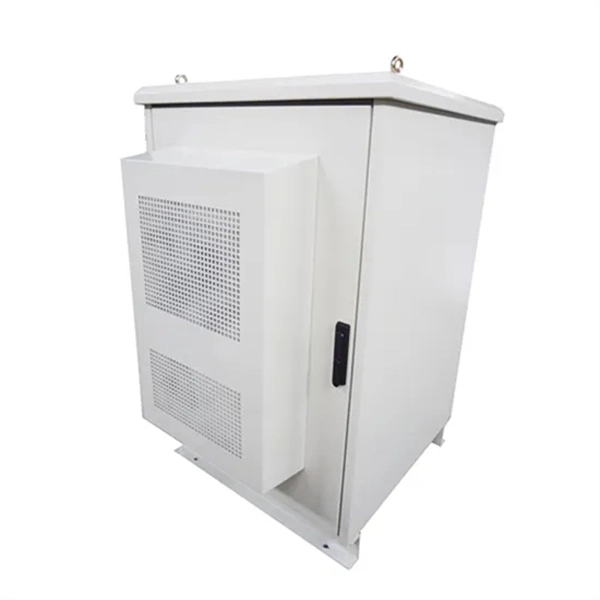

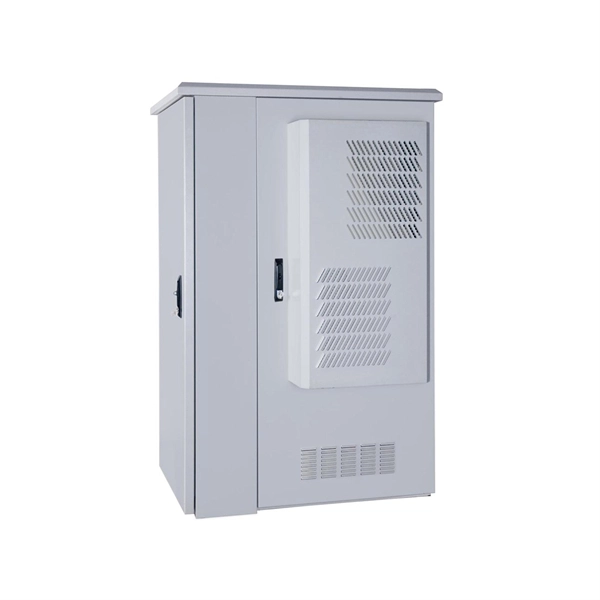

Enclosure and Placement

The distribution box should be installed in a dry, well-ventilated, and accessible location, typically at a height of 1.5 to 1.8 meters for ease of operation and inspection . The enclosure must have an appropriate IP or NEMA rating to protect against dust, water, and mechanical damage, with steel or plastic chosen based on environmental conditions . Ensure the box is securely mounted to prevent movement or tilting due to vibration or impact .

Component Layout and Configuration

Inside the box, components such as circuit breakers, busbars, terminal blocks, and wiring should be arranged to allow safe operation and maintenance . Key layout practices include:

• Incoming breakers on top, outgoing feeders at the bottom, and control devices in the middle to minimize cable crossovers .
• Use DIN rails for mounting modular devices and cable ducts or trays to organize wiring and improve cooling .
• Maintain minimum clearances and creepage distances as per IEC 61439, with at least 14 mm clearance for systems up to 690V .
• Ensure labels are durable, legible, and resistant to heat, oil, and UV for easy identification of circuits and components .

Wiring and Electrical Specifications

• Use high-temperature resistant copper wires sized according to the load current .
• Ensure proper insulation and avoid exposed conductors; all cable inlets and cover joints should be sealed .
• Grounding and earthing are mandatory: all metallic parts, including the box and electrical appliances, must be bonded to the earth bar, with the earth conductor at least half the size of the largest phase conductor but not less than 6 mm² .
• Each circuit should have appropriate protection devices such as fuses, breakers, or surge protectors, rated for the expected voltage and current .

Safety and Compliance

• Follow IEC, NEC, or local electrical codes to ensure safety and regulatory compliance .
• Conduct arc flash hazard analysis and provide proper PPE for maintenance personnel .
• Perform visual inspections and multimeter tests before powering on, and schedule regular maintenance to detect overheating, loose connections, or corrosion .
• Ensure working space clearances around the box for safe access during maintenance .

Additional Considerations

• Consider modular designs for easier future upgrades .

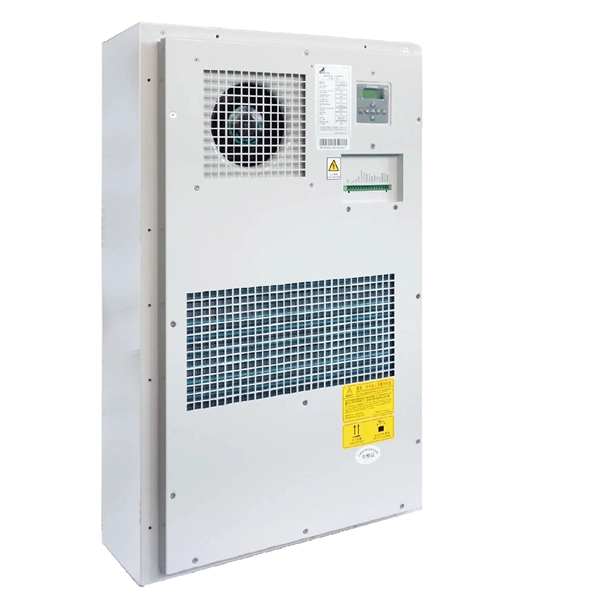

• Use ventilation louvers or fans if heat dissipation exceeds 50W per cubic meter .
• Maintain documentation of installation details for audits and troubleshooting . By following these requirements, distribution boxes can be configured safely, efficiently, and in compliance with international standards, ensuring long-term reliability and protection for both equipment and personnel.
