Entries for electrical distribution boxes in building construction

Electrical distribution boxes receive incoming power and safely route it to multiple circuits through properly designed entries, protective devices, and wiring arrangements.

Overview of Distribution Box Entries

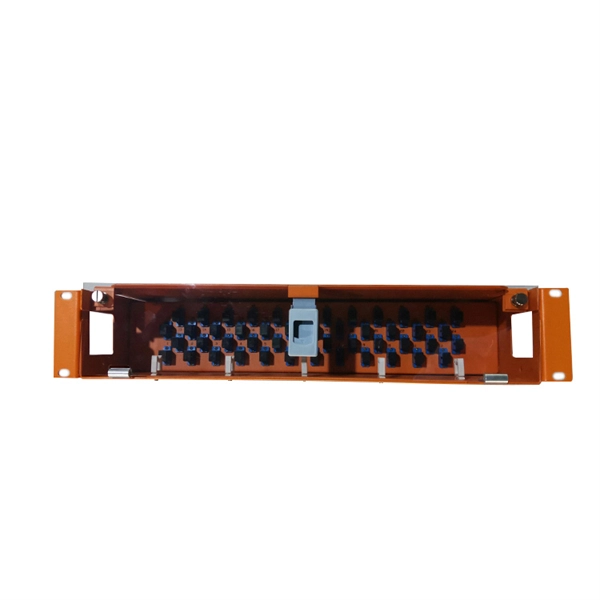

In building construction, a distribution box (also called a distribution board, DB box, or panelboard) serves as the central point where electrical power is divided into branch circuits. The entries refer to the points where incoming and outgoing cables or conduits connect to the box. Proper design and installation of these entries are critical for safety, accessibility, and compliance with electrical codes .

Types of Entries

1. Incoming Power Entry
   • The main supply cable or busbar enters the distribution box through a designated entry point.
   • Typically includes a main switch or isolator to disconnect power for maintenance or emergencies.
   • Surge protective devices (SPDs) may be installed near the incoming entry to protect against voltage spikes .
2. Outgoing Circuit Entries
   • Branch circuits exit the box through separate entries, often organized along DIN rails or busbars.
   • Each outgoing circuit is protected by devices such as MCBs, RCDs, RCBOs, or fuses .
   • Adequate spacing and cable management are essential to prevent conductor damage and allow future expansion.
3. Conduit and Cable Management
   • Entries may be via conduits, cable glands, or knockouts in the enclosure.
   • Conduits must be properly sized to allow smooth cable pulling and bending without damaging insulation.
   • Metal boxes require grounding and bonding to maintain electrical continuity and safety .

Installation Considerations

• Positioning: Install boxes in dry, accessible areas with good ventilation, typically at a height of ~1.5 meters .
• Protection: Enclosures should meet IP or NEMA ratings suitable for the environment (indoor, outdoor, industrial) to prevent dust, moisture, or impact damage .
• Compliance: Follow NEC, IEC, or local codes for box entries, spacing, and conductor protection. Openings around boxes in walls should not exceed ¼ inch to prevent fire spread .
• Internal Layout: Ensure sufficient space for busbars, neutral and earth bars, and cable entries. Modular designs facilitate future upgrades .
• Maintenance: Label all entries and circuits clearly, and schedule regular inspections to maintain long-term reliability .

Special Considerations

• Damp or Wet Locations: Boxes in basements, underground areas, or exposed to weather must have sealed entries and corrosion-resistant materials .
• Large Buildings: Multiple transformers and switchgear may feed several distribution boxes, requiring careful planning of entries to handle high loads and complex routing .
• Safety Devices: Each entry should accommodate protective devices to isolate faults and prevent hazards, including arc-fault detection devices (AFDDs) where required .

Summary

Entries for electrical distribution boxes are not merely holes for cables—they are critical design points that ensure safe, organized, and code-compliant distribution of electricity throughout a building. Proper selection of entry types, conduit sizing, protective devices, and internal layout ensures operational safety, ease of maintenance, and future scalability .
