Inlet wiring distribution box

An inlet wiring box provides a connection point for incoming power, while a distribution box safely distributes electricity to multiple circuits with protective devices.

Inlet Wiring Box

An inlet wiring box is typically used to connect a portable generator or external power source to a building's electrical system. It serves as a safe interface between the generator and the main switch or distribution system. Inlet boxes are often rated for outdoor use (e.g., NEMA 3R) and can be mounted on exterior walls, while the associated switches may be rated for indoor use (NEMA 1) to ensure safety and compliance with electrical codes . They prevent backfeeding and allow for break-before-make switching, which disconnects one power source before connecting another to avoid damage or injury .

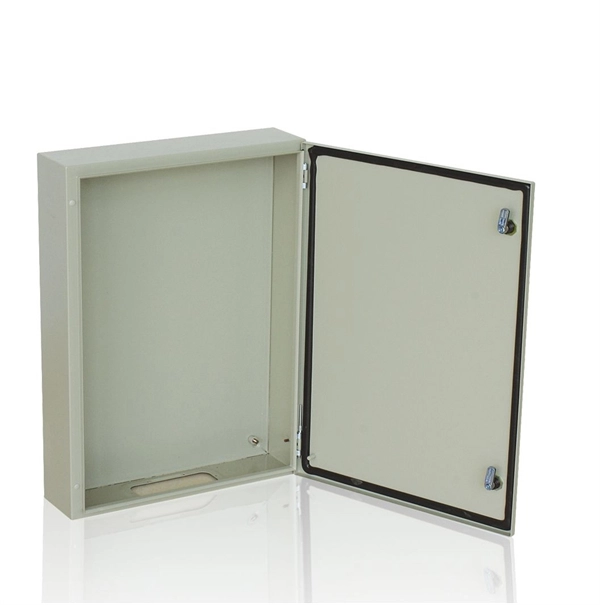

Distribution Box

A distribution box is a low-voltage electrical enclosure that receives incoming power and distributes it to multiple outgoing circuits. It contains protective and switching devices such as MCBs, RCDs, RCBOs, fuses, isolators, busbars, neutral bars, earth bars, and surge protective devices . Distribution boxes are used in residential, commercial, industrial, outdoor, temporary power, solar, or machinery applications. They are selected based on the supply system (single-phase, three-phase, AC, DC), number of circuits, protective-device strategy, rated current, short-circuit capacity, and enclosure protection (IP or NEMA rating, material, UV and corrosion resistance), .

Types and Features

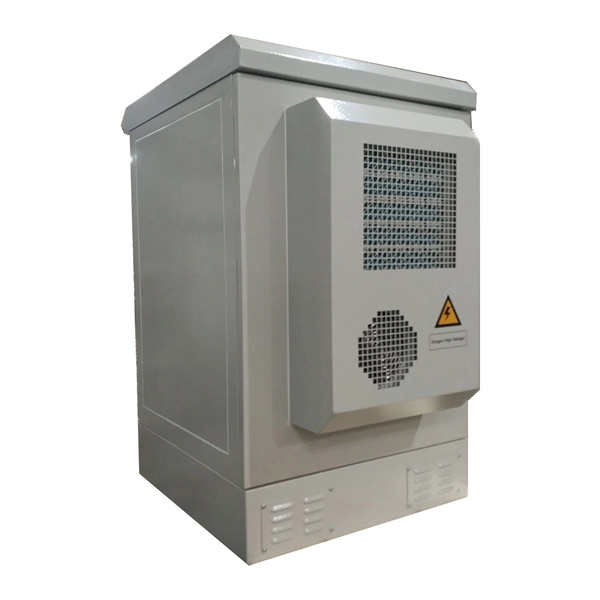

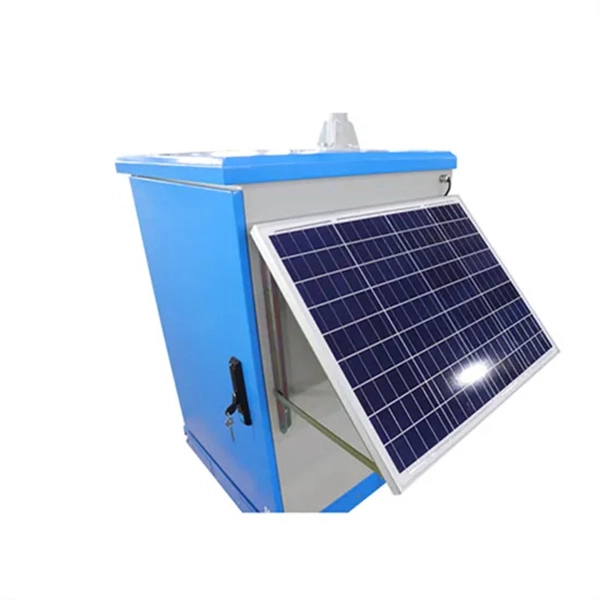

• Waterproof/Outdoor Distribution Boxes: Provide IP65–IP68 protection against dust, rain, and UV exposure, suitable for harsh environments and solar or pump systems .
• Modular Distribution Boxes: Allow flexible, decentralized signal and power transmission, often with pluggable insulation displacement connections for easy installation .
• DIN Rail Enclosures: Facilitate mounting of circuit breakers, terminal blocks, and other devices for neat wiring and future expansion .

Installation Considerations

Proper installation is critical for safety and reliability. Key points include :

• Choose the right box based on environment (indoor/outdoor), load capacity, and durability.
• Ensure correct IP/NEMA rating and material quality.
• Install in dry, accessible areas with good ventilation, typically at ~1.5 meters height.
• Practice good wiring: secure grounding, proper insulation, correct wire gauge, and breaker sizing.
• Include protection devices for each circuit and comply with local standards (NEC, IEC, UL/CE).
• Use modular designs and label circuits for easier maintenance and future upgrades. In summary, inlet wiring boxes are primarily for connecting external power safely, while distribution boxes manage and protect the distribution of electricity to multiple circuits. Both require careful selection, proper installation, and adherence to safety standards to ensure reliable and long-lasting electrical performance.
